SDDs for Standard Applications: Best way to start
Simplicity and high spectroscopic accuracy – that’s what you get with our Base SDDs for standard applications. A variety of detector modules with energy resolution values of 127 eV FWHM @ Mn-Kα and easy operation are available at excellent prices. They cover active areas ranging from 5 mm2 to 30 mm2.
Excellent Performance at Excellent Prices
-
High spectroscopic accuracy with energy resolution values down to 125 eV FWHM @ Mn-Kα
-
Low spectral background with P/B values up to 20 000 and P/V values up to 4 000
-
Very good energy resolution even at short processing times, especially for our droplet shaped SD3 detectors
-
Our SDDplus detectors are also available with larger active areas
-
All detector modules are available with either Beryllium Window or Ultra Thin Polymer Window (UTW) and Planar Thin Window (PTW) for light element detection
Read more

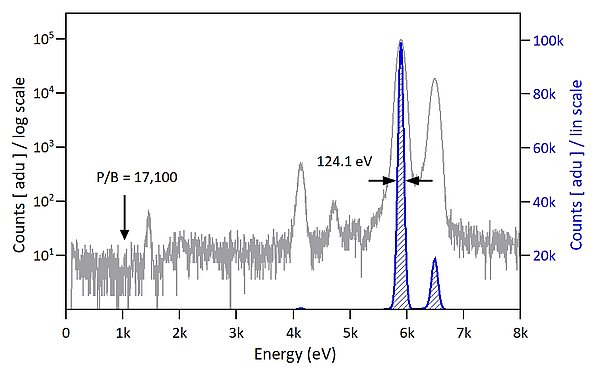

![[Translate to Chinese:] Fe55 spectrum measured with an SD3-10 detector module at -20°C and 1µs shaping time](/fileadmin/_processed_/6/5/csm_spektrum_plot_sd310_a56e832f17.jpg)
[Translate to Chinese:] Fe55 spectrum measured with an SD3-10 detector module at -20°C and 1µs shaping time

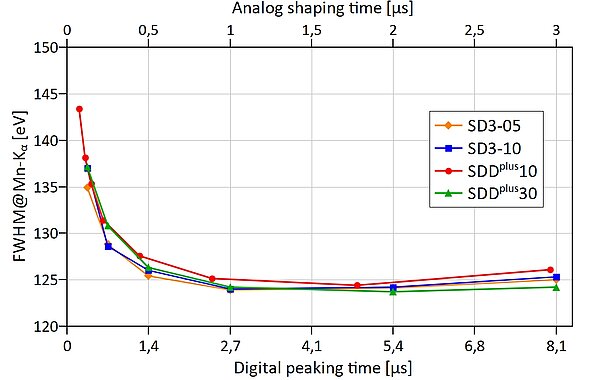

![Energy resolution versus processing time for four different Base SDDs](/fileadmin/_processed_/f/d/csm_base_fwhm_alle_module_getauscht_92d6406791.jpg)
Energy resolution versus processing time for four different Base SDDs

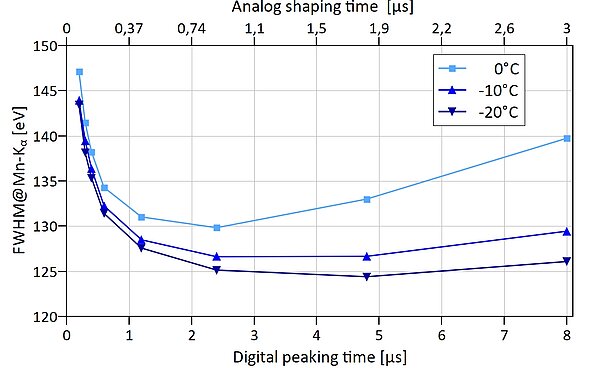

![[Translate to Chinese:] Energy resolution plotted against processing time measured with an SDDplus-10 detector module at various chip temperatures](/fileadmin/_processed_/2/3/csm_base_fwhm_tempabh_sddplus-10_ab6fdbb027.jpg)
[Translate to Chinese:] Energy resolution plotted against processing time measured with an SDDplus-10 detector module at various chip temperatures

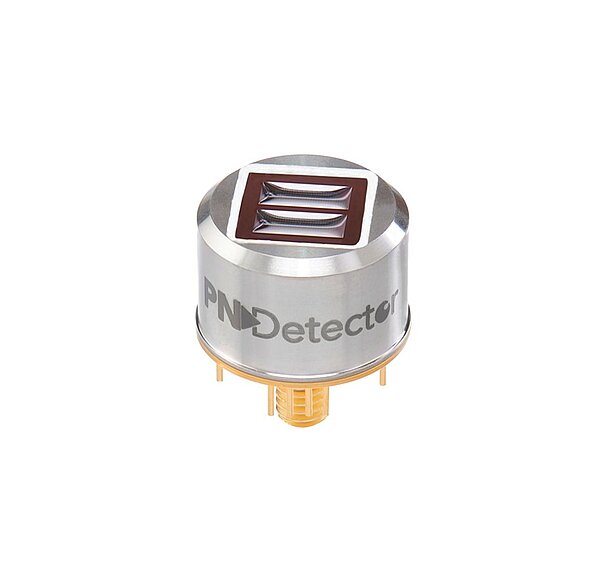

![[Translate to Chinese:] SDDplus-30 Module with Planar Thin Window (PTW)](/fileadmin/_processed_/4/1/csm_ptwls2_d7cfb67331.jpg)
[Translate to Chinese:] SDDplus-30 Module with Planar Thin Window (PTW)
Select products
Select products description
![](/fileadmin/user_upload/documents/pdf/flyer/datasheet_mod-sd3-s-005r-pnw-xxx-to8-1-u.png)
![](/fileadmin/_processed_/3/b/csm_5_ab053d1c2b.jpg)
SD3-05-128pnW Detector
127 eV FWHM @ Mn-Kα, -20 °C
49 eV FWHM @ C-K, -20 °C
15 000 P/B ratio
Select products
Select products description
![](/fileadmin/user_upload/documents/pdf/flyer/datasheet_mod-sd3-s-010r-pnw-xxx-to8-1-u.png)
![](/fileadmin/_processed_/3/e/csm_10_a0ac0ef71f.jpg)
SD3-10-128pnW Detector
127 eV FWHM @ Mn-Kα, -20 °C
49 eV FWHM @ C-K, -20 °C
15 000 P/B ratio
Select products
Select products description
![](/fileadmin/user_upload/documents/pdf/flyer/datasheet_mod-sdd-p-010r-pnw-xxx-to8-1-u.png)
![](/fileadmin/_processed_/3/e/csm_10_227394ab2d.jpg)
SDDplus-10-128pnW Detector
127 eV FWHM @ Mn-Kα, -20 °C
49 eV FWHM @ C-K, -20 °C
7 500 P/B ratio
Select products
Select products description
![](/fileadmin/user_upload/documents/pdf/flyer/datasheet_mod-sdd-p-030r-pnw-xxx-to8-1-u.png)
![](/fileadmin/_processed_/2/3/csm_30_080ace144d.jpg)
SDDplus-30-128pnW Detector
127 eV FWHM @ Mn-Kα, -30 °C
49 eV FWHM @ C-K, -30 °C
12 500 P/B ratio
