PNDetector´s BSDs with a very low signal capacitance and leakage current levels combined with high-speed preamplifiers enable best performance at scan rates up to 100 MHz.
Low sensor capacitances down to 3 pF/channel enable high speed imaging and support the very low noise characteristics
A broad primary energy range from 0.5 keV to 300 keV is covered
Fast signal rise times down to 10 nsec
Excellent geometric collection efficiency up to 65 % for higher signal intensity and contrast
High custom design flexibility

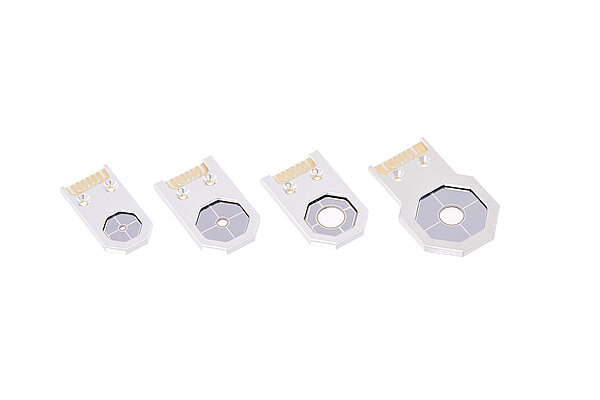

The Standard BSD in flexible configuration is available with different chip geometries. It can be combined with our 4-Channel Standalone Preamplifer as a whole module icluding the electronics or can be used as single detector module.

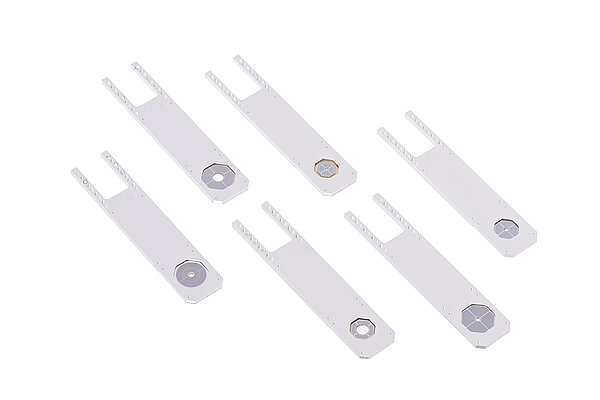

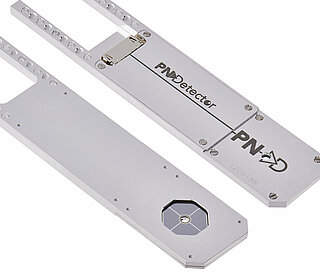

The Advanced BSD equipped with integrated 4-Channel Preamplifier with different chip geometries enables ultrafast imaging beyond TV-Speed with scan rates up to 100 MHz and low signal capacitance. Our Advanced BSD is the best choice for easy plug and play installations and high throughput.
