Large SDDs for high detection efficiency
To increase the detector collection efficiency, PNDetector developed different SDD sensors with large detection areas and optimized geometries. With our unique and unrivalled designs solid angles exceeding 1 sr can be achieved with single channel SDDs.
Large areas - great efficiency
-
Excellent energy resolution down to 125 eV @ −30 °C or 123 eV @ −40 °C
-
The superior energy resolution enables light element detection down to Lithium even with 100 mm2 SDDs
-
Due to our long lasting experience in packaging, we can offer extremely compact and application-oriented module packages, with chamfered caps
-
Small modifications can lead to big changes – to achieve the best fit request a proposal for a customized solution tailored to your system
Read more

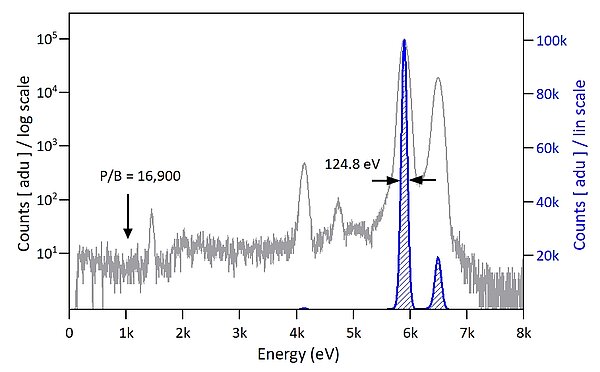

![[Translate to Chinese:] Fe55 spectrum measured with an SDDplus-100 detector module at -30°C and 4.8 µs peaking time](/fileadmin/_processed_/9/a/csm_spektrum_plot_sdd100round_1070f3fe89.jpg)
[Translate to Chinese:] Fe55 spectrum measured with an SDDplus-100 detector module at -30°C and 4.8 µs peaking time

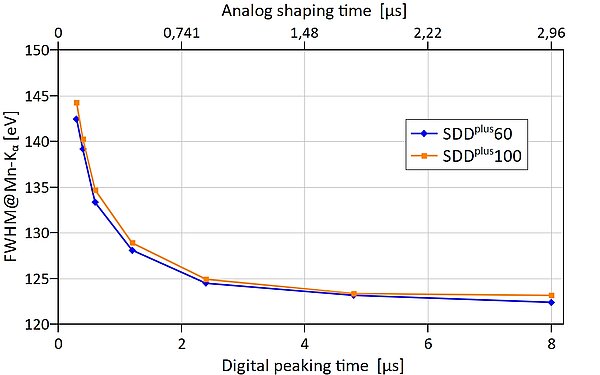

![[Translate to Chinese:] Energy resolution plotted against processing time measured with an SDDplus-60 and an SDDplus-100 detector](/fileadmin/_processed_/c/2/csm_large_fwhm_alle_module_get_97ea534b72.jpg)
[Translate to Chinese:] Energy resolution plotted against processing time measured with an SDDplus-60 and an SDDplus-100 detector

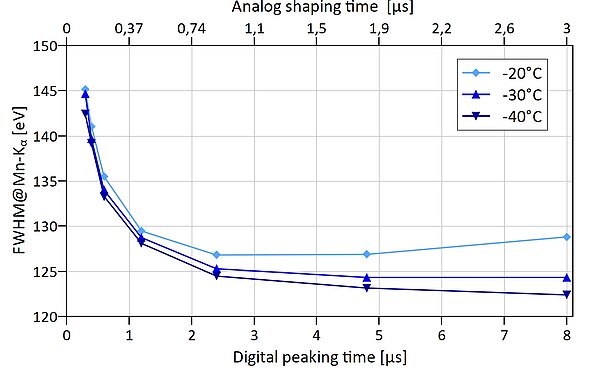

![[Translate to Chinese:] Energy resolution plotted against processing time measured with an SDDplus-60 detector at different chip temperatures](/fileadmin/_processed_/c/e/csm_large_fwhm_temp_abh_sddplus60_f83aeecc87.jpg)
[Translate to Chinese:] Energy resolution plotted against processing time measured with an SDDplus-60 detector at different chip temperatures

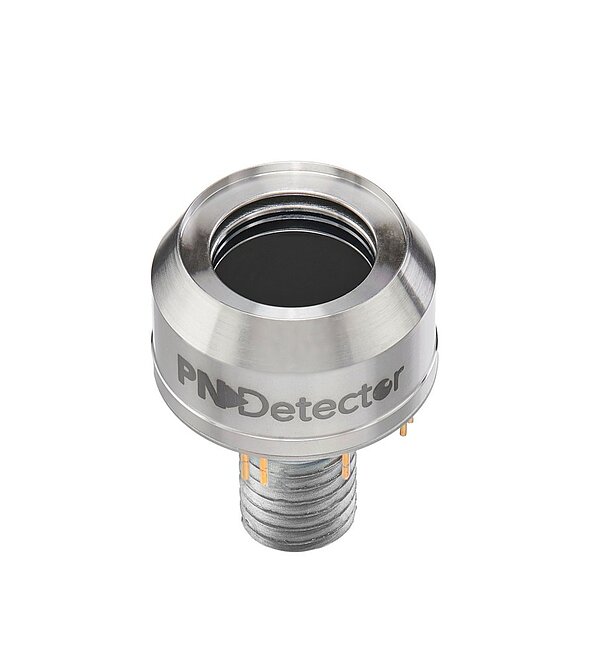

![[Translate to Chinese:] SDDplus-100 Detector with windowless configuration](/fileadmin/_processed_/2/1/csm_omlarge_a0eedb3b54.jpg)
[Translate to Chinese:] SDDplus-100 Detector with windowless configuration

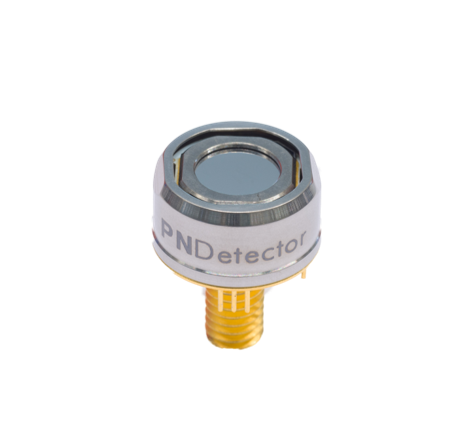

![[Translate to Chinese:] SDDplus-60 Detector with chamfered cap](/fileadmin/_processed_/2/e/csm_chamfered_cap1_37a32a9074.png)
[Translate to Chinese:] SDDplus-60 Detector with chamfered cap
Select products
Select products description


SDDplus-60-128pnW Detector
127 eV FWHM @ Mn-Kα, −30 °C
51 eV FWHM @ C-K, -30 °C
> 15 000 P/B ratio
Select products
Select products description


SDDplus-100-128pnW Detector
128 eV FWHM @ Mn-Kα, −30 °C
53 eV FWHM @ C-K, -30 °C
> 15 000 P/B ratio
