高通量 SDD 模块
SDDs for Industry-Specific Needs: High throughput is the major goal
Our High-Flux SDD Modules with ASIC preamplifier are the perfect solution for any application where high count rate performance is the major goal. Due to the extremely low leakage currents levels of PNDetector‘s SDD fabrication, we are happy to provide the best energy resolution of SDDs with ASIC preamplifiers on the market. They are the perfect candidate for demanding industrial customers.
Best SDDs with ASIC at All Operating Temperatures
-
Excellent energy resolution down to < 124 eV FWHM @ Mn-Kα at optimum processing time
-
Extreme high temperature performance with resolution values < 135 eV at 22°c chip temperature
-
High throughput with minimum dead time due to the fast ASIC
-
Best energy resolution down to 132 eV FWHM @ Mn-Kα available for small peaking times 0.2µs and high count rates 1Mcps (ICR)
Read more

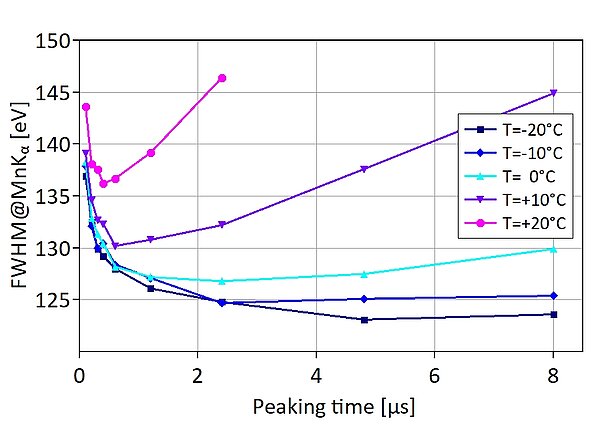

Energy resolution plotted against processing time measured with an SDD-30 detector with ASIC at different chip temperature

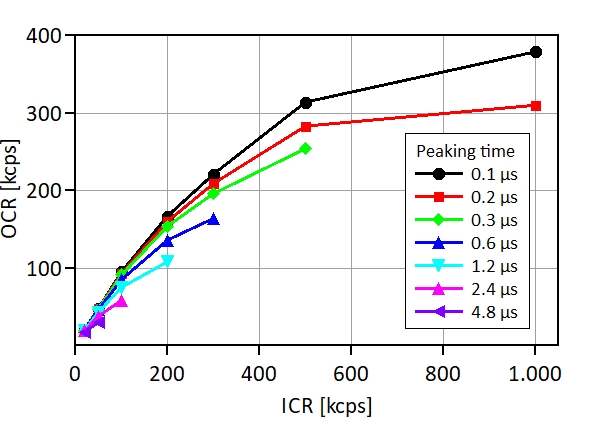

High throughput of an SDD with ASIC demonstrated by a plot of outgoing versus incoming counts at different peaking times.

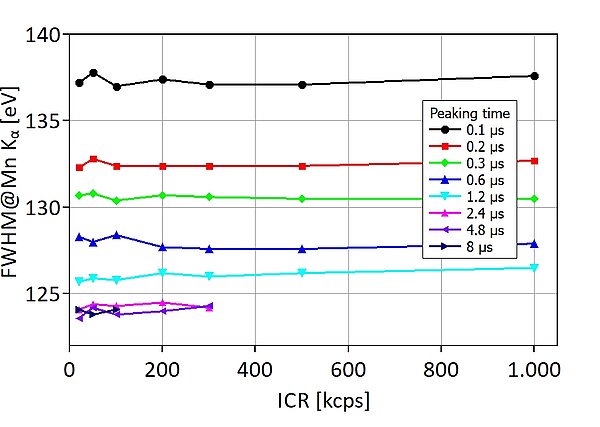

Peak stability of an SDD with ASIC shown at different peaking times
Our High-Flux SDDs are available within our XRS Systems. Read more about our XRP-A and XRS-A Systems:
