用于高通量应用的 XRF 光谱仪灵活解决方案 (XRP-A)
The XRP-A
is the perfect solution for any application where high count rate performance and throughput is the major goal. It is the compact version of a XRF detector system consisting of a hermetic sealed SDD Module with ASIC combined with a low noise preamplifier.
Based on High Flux SDD modules
Key Features
-
Compact XRF detector system for easy integration into customer equipment
-
SDD-Module with ASIC preamplifier for high count rate application
-
Excellent energy resolution also at short peaking times down to 100ns
-
High peak stability up to 1 Mcps
Read more
![[Translate to Chinese:] XRF Preamplifier Module XRP-A-30-128-BeP-MLC](/fileadmin/_processed_/f/0/csm_xrp-a_stacked_9a27132418.jpg)

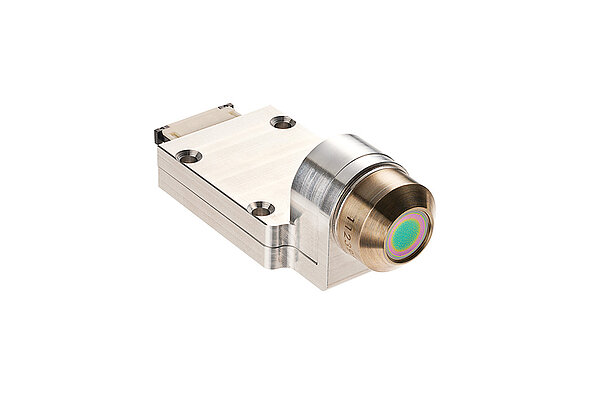

[Translate to Chinese:] XRF Preamplifier Module XRP-A-30-128-BeP-MLC

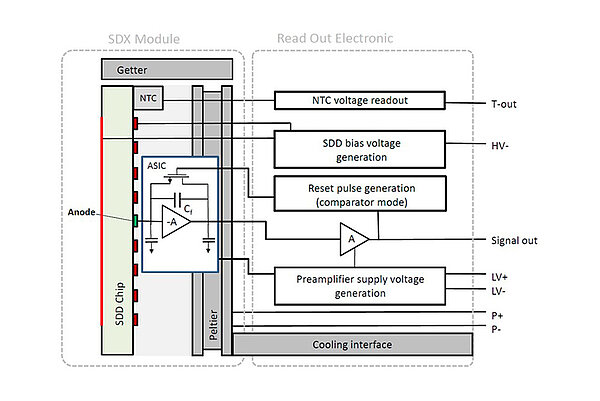

XRP-A Block Diagram

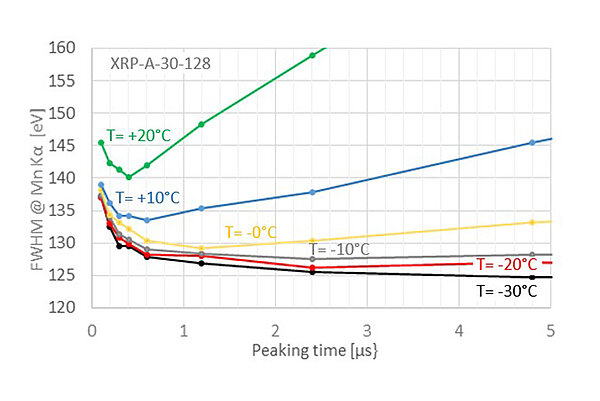

Energy Resolution @ Moderate Chip Cooling

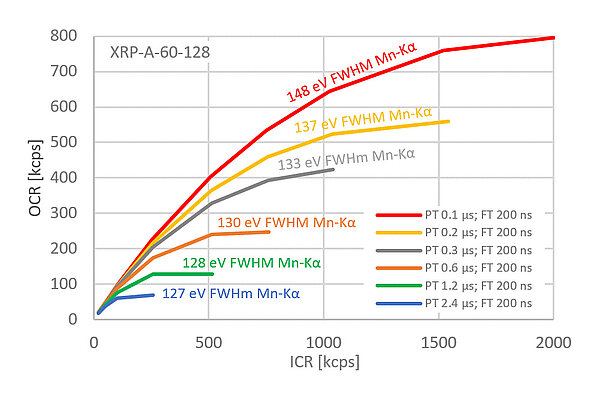

Throughput up to 1 Mcps ICR

Peak Stability

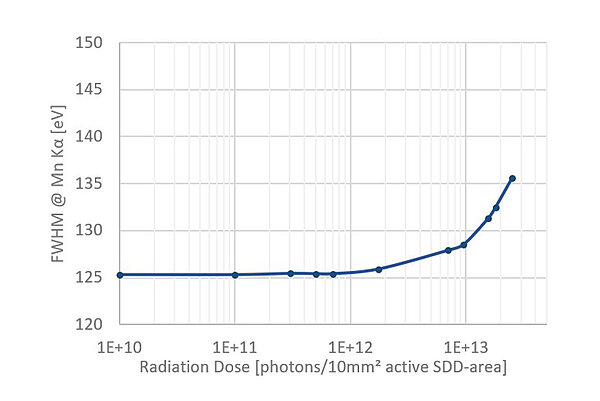

Superior Radiation Hardness

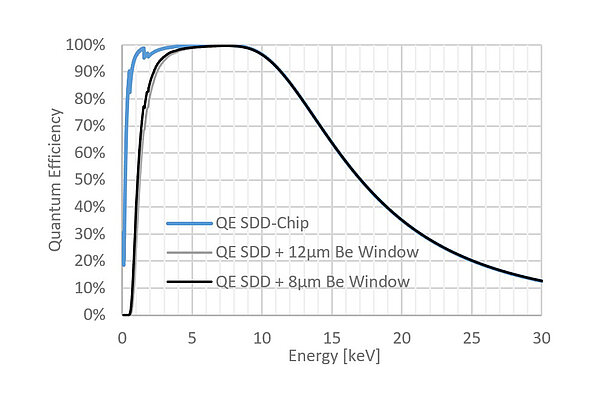

Quantum Efficiency of the SDD Chip and the Module with Beryllium Window

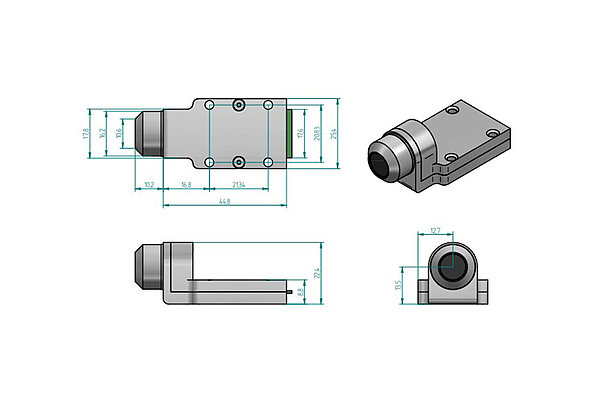

XRP-A 30 Dimensions in mm
Further Spectrometer Components
-
Supply Unit – XRU-A
supplies the operation voltages needed to operate the XRP-A and controls the cooling of the SDD to -20°C
-
Digital Pulse Processor - DPP
generates the spectrum from the analogue XRS output signal. It offers single spectrum generation as well as operation in mapping mode
![[Translate to Chinese:] Supply Unit - XRU-A](/fileadmin/_processed_/4/5/csm_digitalpulseprocessor_4818e5d334.png)

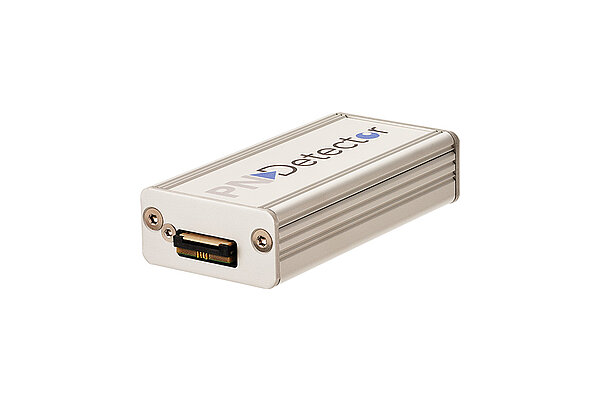

[Translate to Chinese:] Supply Unit - XRU-A
![[Translate to Chinese:] Digital Pulse Processor - DPP](/fileadmin/_processed_/4/d/csm_digital_pulse_processor_27a24a7fb7.jpg)
[Translate to Chinese:] Digital Pulse Processor - DPP
