高级背散射探测器
The innovation- the ultrafast PNDetector’s Advanced BSD Module
We integrated professionally the preamplifier into the same ultraslim housing as the Standard BSD detector to optimize your speed of operation and the ease of workflow.
Key Features
-
Ultrafast imaging at HD TV-speed with pixel dwell times down to 10 ns is possible
-
Sharp images without smearing artifacts
-
Direct sample search at highest scan speeds
-
Enhanced depth of information due to the broad energy range down to 0.5 keV
-
Customer specific solutions to perfectly fit any SEM system
-
Vacuum compatible components
-
Available in two versions of single and double switchable preamplification gains
-
To be combined with PNDetector‘s Retractable Arm to move simply through the SEM chamber

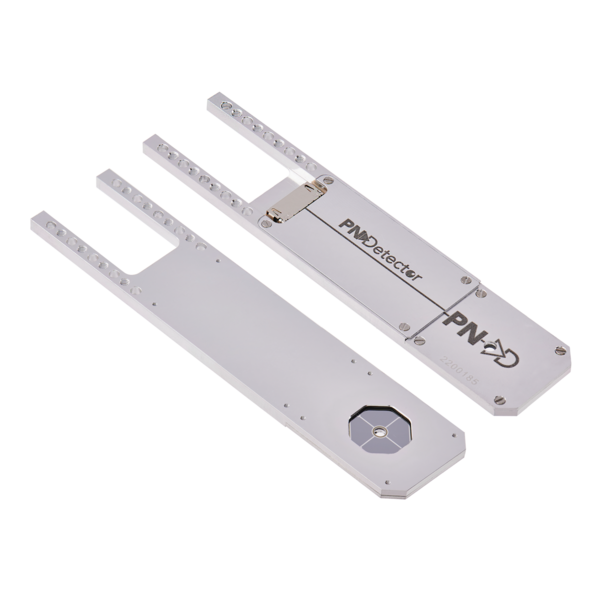

BSE Advanced Detector: front and back side

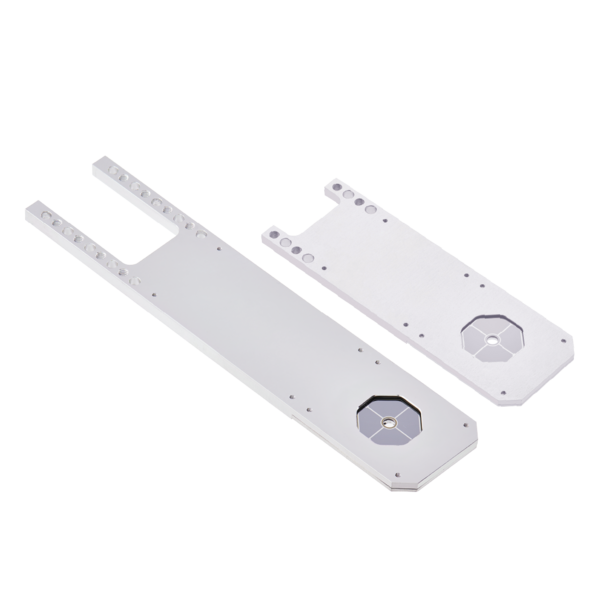

BSE Advanced detector in two different housings: long and compact

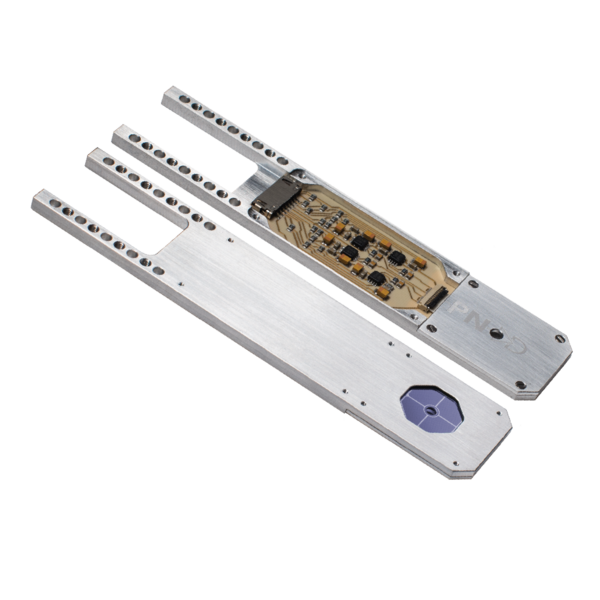

Inside view of the BSD advanced module including the integrated 4-Channel Preamplifier
Comparison between the traditional BSD module configuration (up) and the PNDetector‘s Advanced BSD module (down).

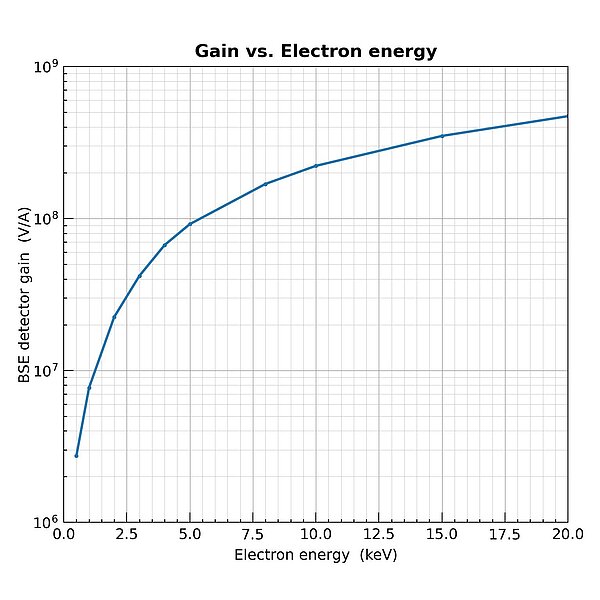

Advanced BSD gain vs. electron landing energies on the detector. Preamplification gain: 1×10⁵ V/A

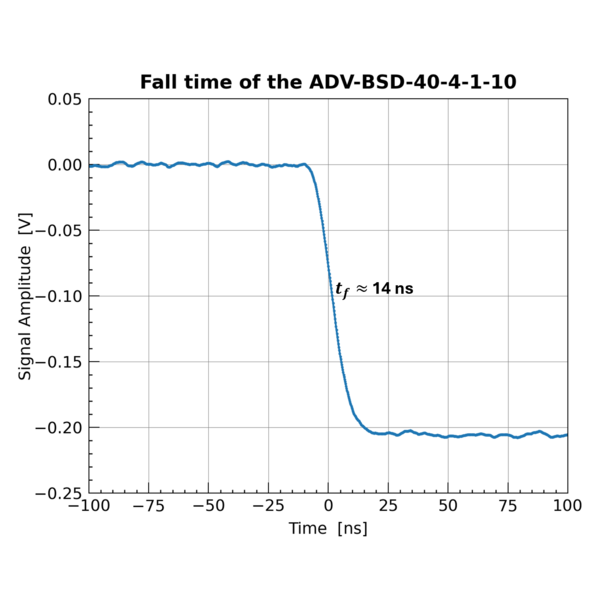

Signal fall time of ~ 14 ns measured with PNDetector´s Advanced BSD type ADV-BSD-40-4-1-10

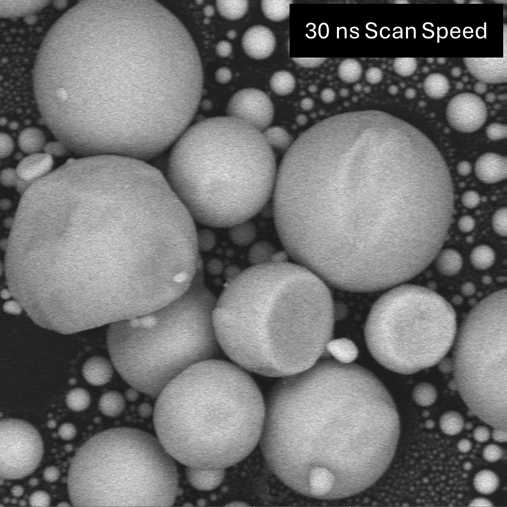

High-speed PNDetector's BSD image captured at 30 ns scan speed, delivering sharp, detailed results with outstanding clarity
Select products
Select products description
The ADV-BSD-40-4-1-10 Detector
40 mm² active area
4 segments and 1 ring
1 mm central hole diameter
4 segments and 1 ring
1 mm central hole diameter
Select products
Select products description
The ADV-BSD-50-4-1-56 Detector
50 mm² active area
4 segments and 1 ring
5.6 mm central hole diameter
4 segments and 1 ring
5.6 mm central hole diameter
Select products
Select products description
The ADV-BSD-80-4-1-20 Detector
80 mm² active area
4 segments and 1 ring
2 mm central hole diameter
4 segments and 1 ring
2 mm central hole diameter
Select products
Select products description
The ADV-BSD-150-4-1-20 Detector
150 mm² active area
4 segments and 1 ring
2 mm central hole diameter
4 segments and 1 ring
2 mm central hole diameter
Select products
Select products description
The ADV-BSD-150-4-1-50 Detector
150 mm² active area
4 segments and 1 ring
5 mm central hole diameter
4 segments and 1 ring
5 mm central hole diameter
