XRF 光谱仪 All-in-One (XRS-A)
The XRS-A (All-in-One)
includes all the components needed for a XRF spectrometer in one compact device without any compromise on performance. It consitsts of hermetic sealed SDD Module with ASIC combined with a low noise preamplifier, power supply, peltier control and digital pulse processor.
Based on High Flux SDD modules
Key Features
-
XRF spectrometer for easy use in industry and laboratory for single spectrum generation as well as operation in mapping mode
-
SDD-Module with ASIC preamplifier for high count rate application
-
Excellent energy resolution and peak stability also at high input count rates up to > 1Mcps
-

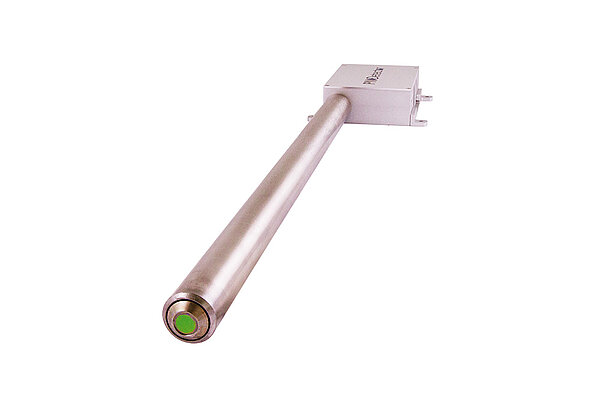

Compact housing with detector tube for adaption to vacuum chambers
-
XRF Detector window options, Beryllium or PTW for light element measurements down to carbon
Read more
![[Translate to Chinese:] XRS-A-30-128-200](/fileadmin/_processed_/2/e/csm_bild1_4878e94c2c.png)

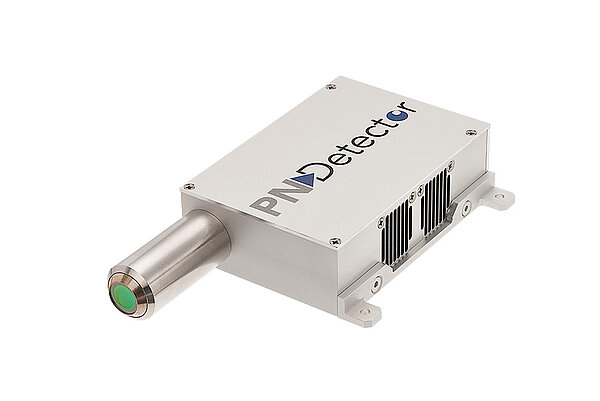

[Translate to Chinese:] XRS-A-30-128-200
![[Translate to Chinese:] XRS-A Block Diagram](/fileadmin/_processed_/f/d/csm_xrs_a_blockdiagramm_a406b141a4.png)
[Translate to Chinese:] XRS-A Block Diagram
![[Translate to Chinese:] Energy Resolution](/fileadmin/_processed_/e/8/csm_xrs-a_energy_resolution_c6c4916651.jpg)

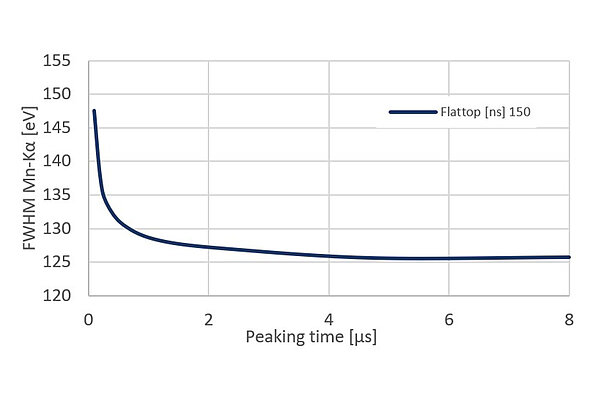

[Translate to Chinese:] Energy Resolution
![[Translate to Chinese:] FWHM Stability](/fileadmin/_processed_/5/8/csm_xrs-a_fwhm_stability_93bb38b131.jpg)

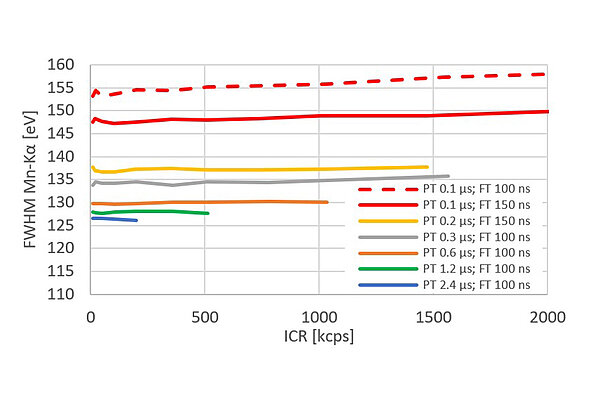

[Translate to Chinese:] FWHM Stability
![[Translate to Chinese:] Peak Stability](/fileadmin/_processed_/e/4/csm_xrs-a_peak_stability_37a7cbf700.jpg)
[Translate to Chinese:] Peak Stability
![[Translate to Chinese:] Throughput](/fileadmin/_processed_/f/e/csm_xrs-a_throughput_e46421b616.jpg)

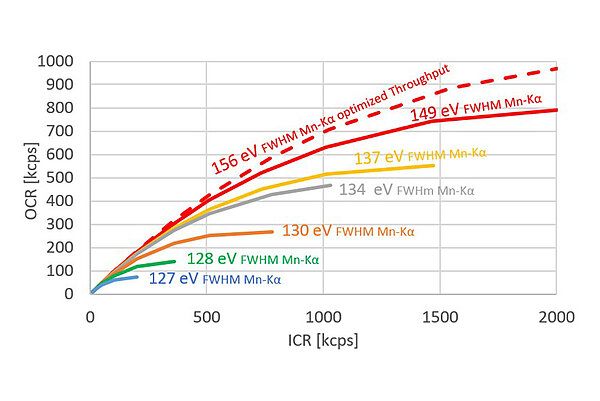

[Translate to Chinese:] Throughput
![[Translate to Chinese:] XRF Window Options](/fileadmin/_processed_/6/e/csm_xrs-a_xrf_window_options_dcaf48df4a.jpg)
[Translate to Chinese:] XRF Window Options
![[Translate to Chinese:] Quantum Efficiency](/fileadmin/_processed_/3/8/csm_xrs-a_quantum_efficiency_ae6f93ca86.jpg)

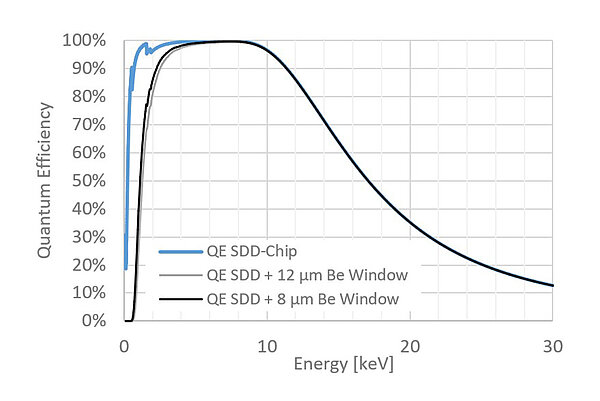

[Translate to Chinese:] Quantum Efficiency

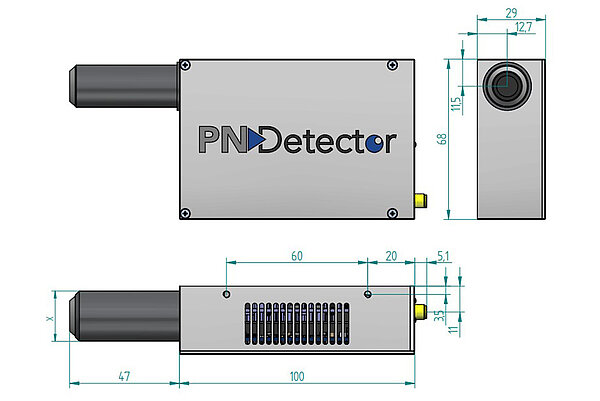

Dimensions in mm
