The XRP
is the compact version of the XRF Detector System for easy integration into customer equipment. It consists of a hermetic sealed SDD Module based on a SDD with in chip integrated FET combined with a low noise preamplifier and supports the full functionality of our Complete Module series.
Based on SDD Base series.
Key Features
-
Compact high resolution detector for easy integration into customer equipment
-
For use with digital pulse processor
-
Pressure and temperature monitoring for completely controllable SDD module conditions and Getter reactivation option for extension of module vacuum life time
Read more

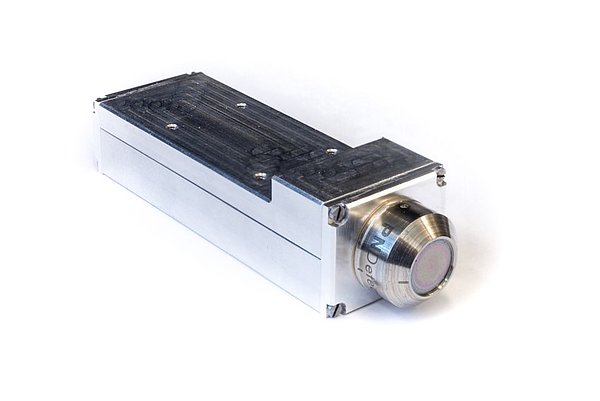

[Translate to Chinese:] XRF Preamplifier Module XRP-30-128-101 BeP-Complete

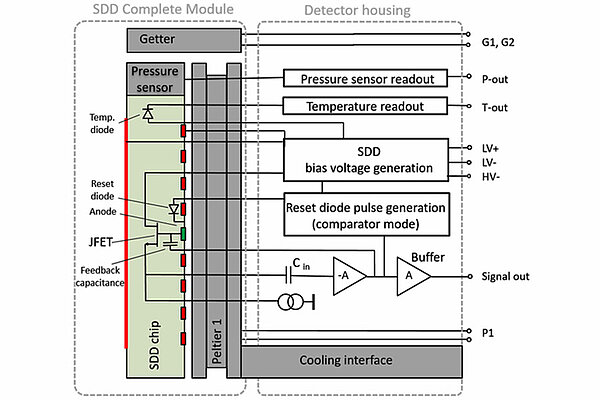

XRP-Block Diagram

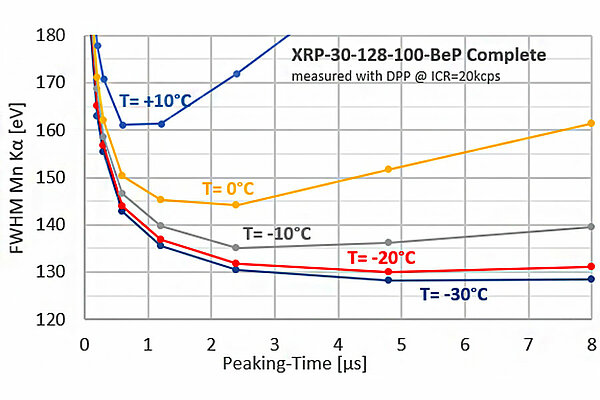

Energy Resolution @ At Moderate Chip Cooling

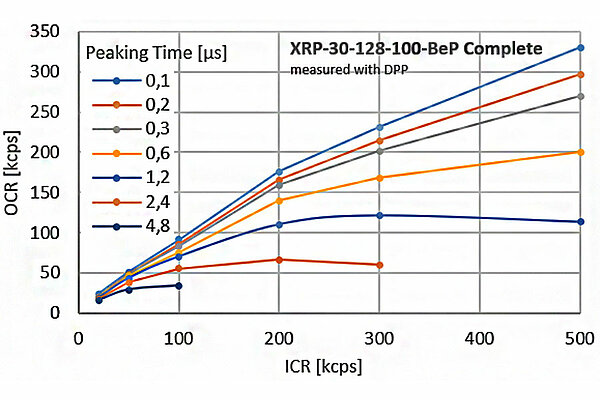

Throughput up to 500 kcps measured with standard DPP parameters

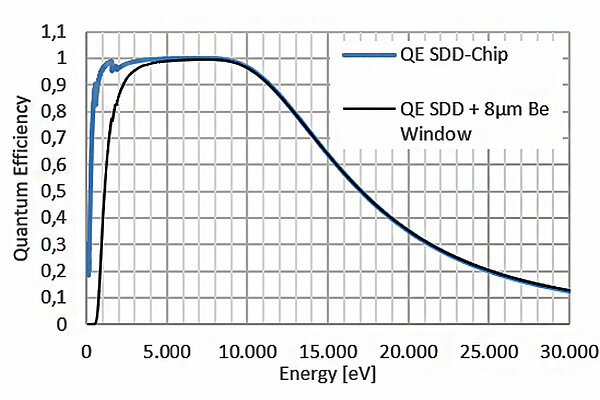

Quantum Efficiency of a System with 8 µm Beryllium Window
Superior Radiation Hardness

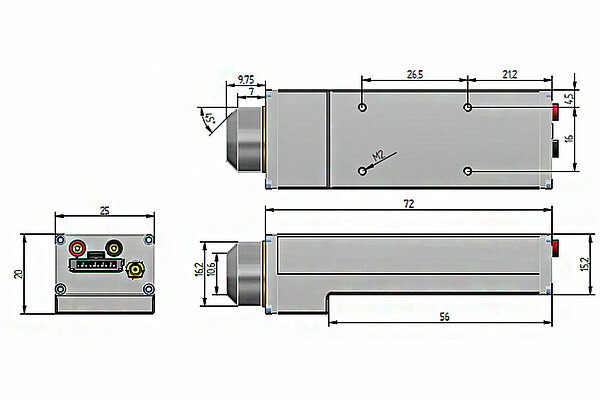

Dimensions of XRP-30-128-101-BeP Complete
Further Spectrometer Components
-

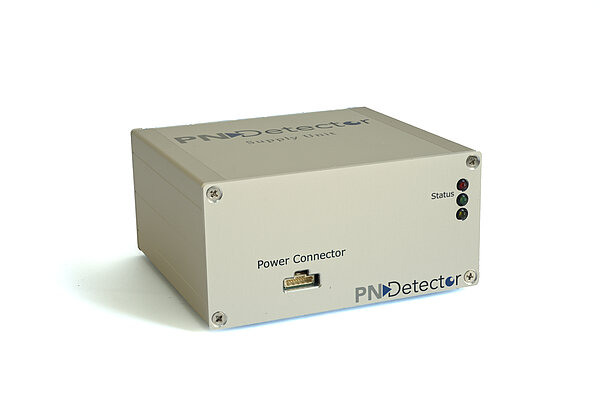

Supply Unit - XRU v1.1 (9V)
supplies the operation voltages needed to operate the XRS, controls the cooling and monitors the sensors for chip temperature and module pressure
-
Digital Pulse Processor - DPP
generates the spectrum from the analogue XRS output signal. It offers single spectrum generation as well as operation in mapping mode
