背散射/ STEM 探测器系统
Upgrade your SEM or TEM with PNDetector’s BSD/STEM System
In order to get a fast and versatile signal processing and image acquisition, we offer our BSD/STEM System including the electrical and mechanical components to provide an easy and user friendly installation into your SEM/TEM System. Different configurations of main amplifiers for faster signal processing are available as well as the retraction mechanism to provide an easy movement of the detector without any extra effort.

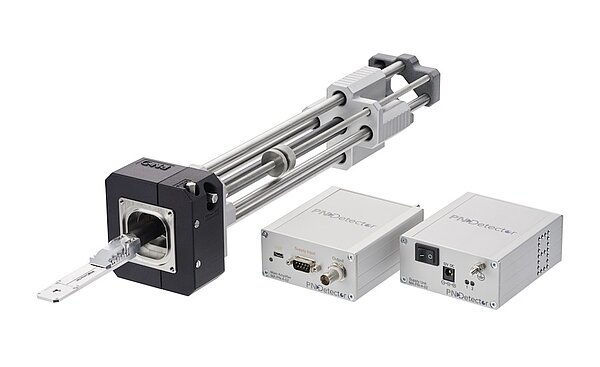

PNDetector´s BSD Slim System including Advanced BSD detector, Retractable Arm V2 and Main Amplifier MA-PN4. The system in the „Slim version“ is suited for SEMs with less than 4 inputs available.

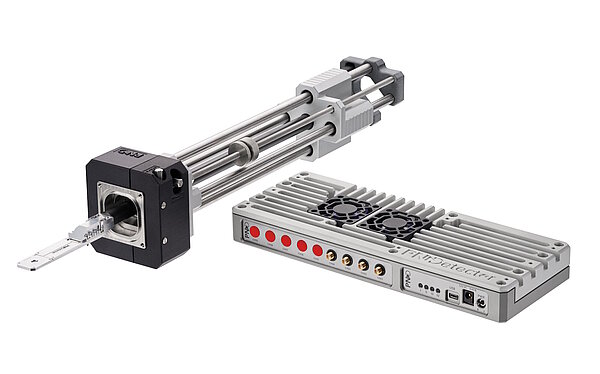

PNDetector´s BSD “Regular” System including Advanced BSD detector, Retractable Arm V2 and Main Amplifier MA-PN44. The "Regular Version" system includes four separate output signals that can be routed into the SEM.

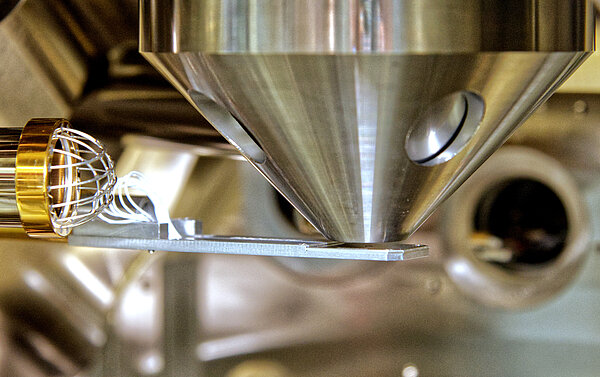

PNDetector‘s Advanced BSD installed in a SEM chamber via Retractable Arm

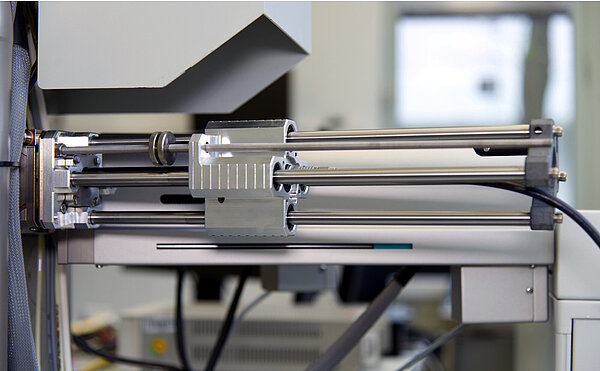

The Retractable Arm can be easily moved into the SEM/TEM chamber through the microscope flange.
Schematic of PNDetector’s BSD system integrated into an SEM: the Advanced BSE detector is positioned at the front of the retractable positioning system, with image acquisition managed via PNDetector’s Main Amplifier GUI software.
