PNDetector‘s 4-Channel Main Amplifier
It supports all the necessary signal conditioning for many BSE imaging applications.
Key Features
-
4-channel summing amplifier
-
Individual combination of 4 signals (addition/subtraction/neutral)
-
Adjustable gain/contrast setting (1 -1000)
-
Adjustable offset/brightness setting
-
Switch between different predefined channel configurations (1x Composition, 2x Topography)
-
USB port for connection to PC
-
Gain control software
-
Power supply by plug transfer for 230 V grid connection

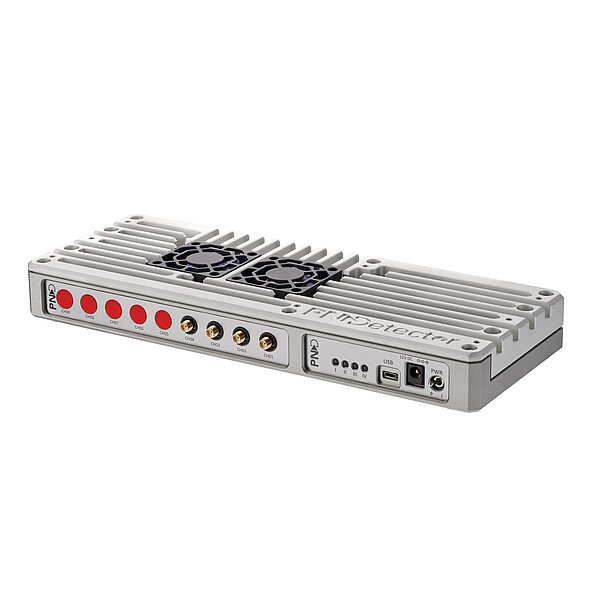

MA-PN44 Main Amplifier

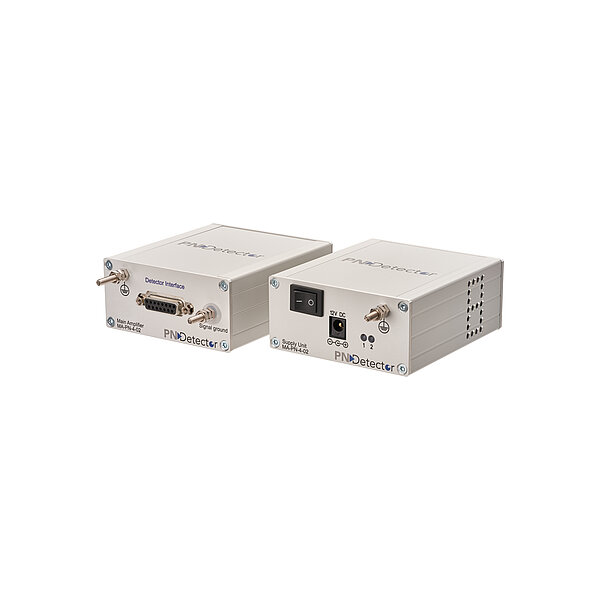

MA-PN4 or MA-PN4-SWG Main Amplifier and Supply Unit
Graphical user interface of the control software for Main Amplifier MA-PN4 and MA-PN4-SWG
MA-PN44
PNDetectors’s 4 channel Main Amplifier with integrated supply unit for contrast and brightness control of each individual channel. Scan rates up to 100 MHz.
MA-PN4-SWG
PNDetector’s 4-Channel Main Amplifier in Switchable Gain configuration, including supply voltage unit for advanced signal mixing and gain- / brightness-control supports scan rates up to 50 MHz.
MA-PN4
PNDetector’s 4-channel Main Amplifier together with the supply voltage box for advanced signal mixing and gain- / brightness-control supports scan rates up to 50 MHz.
