Compact XRF Spectrometer with oval-shaped detector (XRP-A-100 oval)
The XRP-A-100 oval
is a compact XRF Detector for easy integration into customer equipment, which ensures high collection efficiency thanks to its oval-shaped active area. It is based on SDD Modules with ASIC, combined with a low noise preamplifier.
Based on High Flux SDD modules.
Key Features
-
Compact detector yielding very large solid angle by its oval chip with an area of 100 mm².
-
Large solid angle enables short measuring times and high efficiency.
-
Measurements on sensitive probes are possible within a reasonable time despite the weak excitation beam.
-
Oval large area chip shows excellent energy resolution due to high quality in-house chip production.
-
Available with Beryllium as well as Planar Thin Window for light element measurements.
Read more

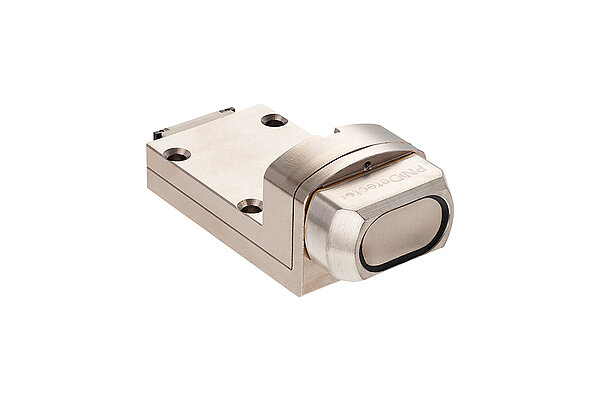

XRP-A-100 oval with Beryllium window and 100 mm² oval active chip area
XRP-A Block Diagram

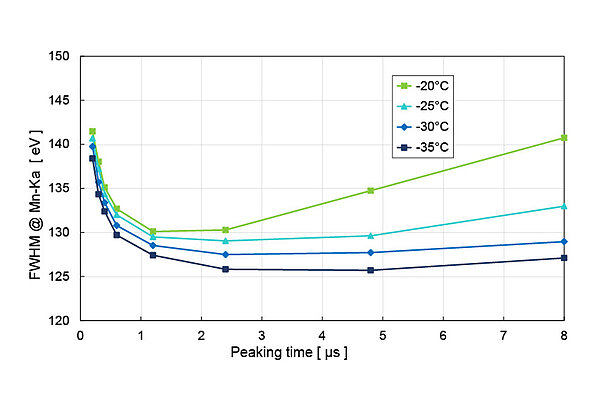

Resolution (FWHM) over Peaking Time of XRP-A-100 oval, dependent on temperature

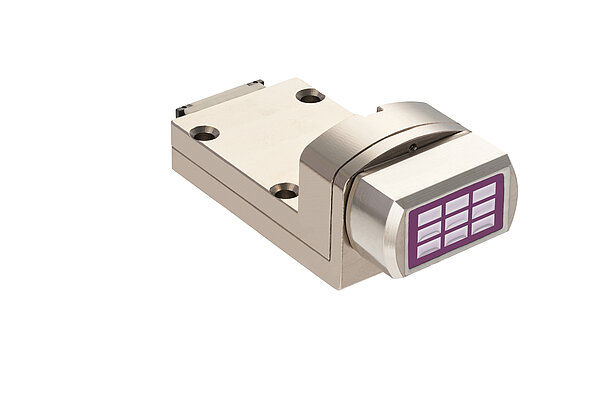

XRP-A-100 oval with 'Planar Thin Window' and 100 mm² oval active chip area

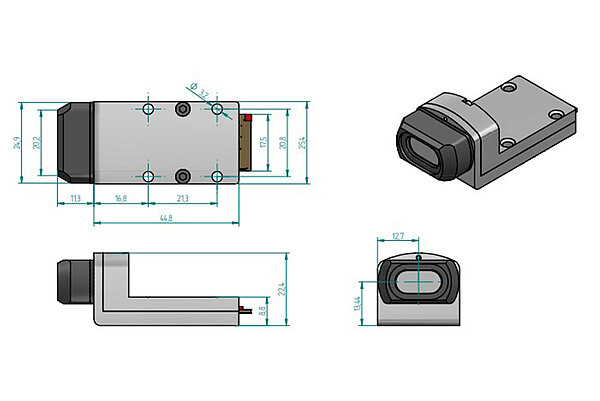

Dimensions of XRP-A-100 oval with Beryllium window, given in mm
Further Spectrometer Components
-
Supply Unit XRU V2.0 (9V)
supplies the operation voltages needed to operate the XRP-A-100 oval, controls the cooling and monitors the sensor with regard to chip temperature.
-
Digital Pulse Processor - DPP 110
generates the spectrum from the analogue XRP-A output signal. Four operation modes are possible: Single Spectrum, Mapping, Fast LIST and LIST-Map Modes, with or without triggering.
Find more information here.
Supply Unit XRU V2.0
Digital Pulse Processor DPP 110
