Advanced STEM Detectors for TEM
A step beyond the limits: the new ultraslim 13-channel PNDetector’s Advanced STEM Detector
Expand your workflow with the 13-channel STEM preamplifier which has been professionally integrated into a new ultraslim housing together with our STEM Detector and changed it to an ultra fast Advanced STEM Detector module. You can get the faster scan rates from every single channel and achieve a better image acqusition. There is no need to connect your STEM detector in the TEM chamber to the electronics outside the chamber via long cables. With PNDetector‘s Advanced STEM Detector you can achieve all you need inside the TEM chamber and get a higher throughput and signal to noise ratios.
Key Features
-
Low noise
-
Fast response time < 30ns
-
Typical preamplifier gain of 105 V/A
-
Compatible to all PNDetector’s STEM chips
-
Vacuum compatible
-
Compatible to PND Retractable Arms and Multi-Channel Main Amplifiers

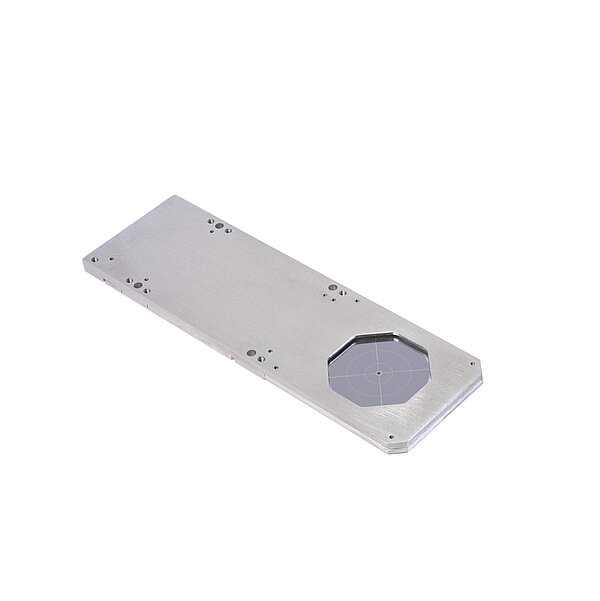

Advanced STEM detector with the chip type: STEM-22-4-3-CH05
EM images of Carbon nanotube clusters taken with ADV-STEM-22-4-3-BF05. The 13-channel Advanced STEM module provides the detailed and individual information of the surface using different channels in correspond fields.
Advanced STEM gain vs. electron landing energies on the detector (Preamplifier Gain: 1×10⁵ V/A)
