CXC FLEX Systems
Configurable pnCCD-based Colour X-Ray Camera systems with remote electronics for flexible positioning and integration
CXC FLEX Systems are complete Colour X-Ray Camera solutions designed for applications where detector positioning, system geometry, or integration constraints require a more adaptable approach. The detector head is separated from the main electronics, enabling flexible placement within the experimental setup while maintaining full system functionality.
Each system is delivered as a complete instrument, including detector head, remote control electronics, cooling infrastructure, and DAQ hardware. This architecture reduces mass and footprint at the measurement position while allowing integration into space-constrained or mechanically complex environments.
FLEX systems support a wide range of experimental configurations, including installations requiring non-standard geometries or extended working distances.
Key Features
-
Sensor head with remote electronics for flexible positioning and reduced mass at the experiment
-
Configurable system architecture supporting adaptable geometries and integration concepts
-
Delivered as a complete detector system with defined interfaces and integration boundaries
-
Reduced footprint at the measurement position compared to fully integrated systems
-
Supports integration into complex laboratory, beamline, and OEM environments
-
Includes detector head, remote electronics, cooling infrastructure, and DAQ hardware
-
Integrated with PNCamSuite software and external control APIs

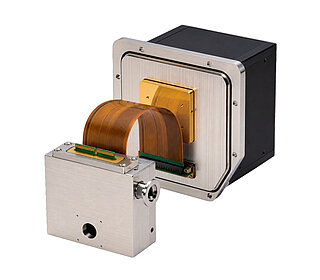

CXC FLEX Air system with separated sensor module, camera electronics module and flexible interconnect.
Rear view of the CXC FLEX Vac sensor module with cooling and flex cable connections.
CXC FLEX Vac system with separated sensor module, camera electronics module and flexible interconnect.
Detector-side view of the CXC FLEX Vac sensor module with flexible interconnect.
CXC FLEX camera electronics module for the separated sensor module architecture.
Rear view of the CXC FLEX Air sensor module showing the cooling interface.
X-ray entrance view of the CXC FLEX Air sensor module.
System Architectures
CXC FLEX Systems are available in multiple configurations to support different operating environments and experimental geometries.
Use the options below to explore how FLEX Systems are implemented for air and vacuum operation.
CXC FLEX Air Systems
Sensor head with remote electronics for flexible positioning and reduced mass at the experiment.
CXC FLEX Vac Systems
Sensor head with remote electronics, enabling flexible positioning and reduced mass inside the vacuum environment.
