Retractable Arm
Ease your setup with PNDetector‘s Retractable Arm
PNDetector’s retractable positioning systems are designed to equip diverse SEMs with PND´s Advanced Modules. The retractable arm (version 2) is optimized for high precision and repeatability.
Key Features
-
Linear feedthrough for precise positioning in x-, y- and z-direction
-
Fully orthogonal positioning without tilting of the detector
-
Integrated electrical feedthrough for 4 up to 16 channels
-
Optimized heat transfer from the Advanced BSE Detector
-
High vacuum compatibility
-
Custom specific flange on customer´s request

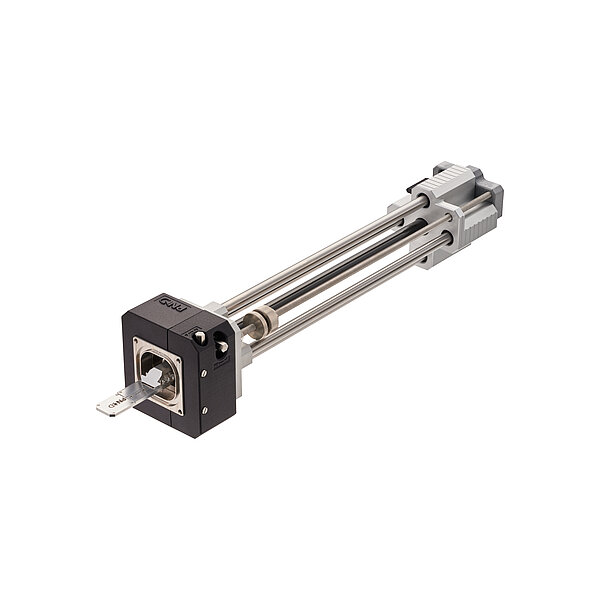

The Manual Retractable Arm Version 2 overview

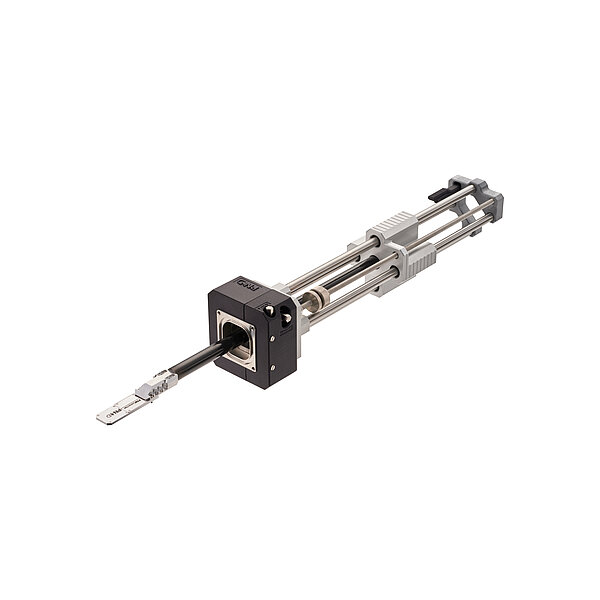

The Manual Retractable Arm Version 2 overview - extended
