CXC Systems
Complete pnCCD-based Colour X-Ray Camera (CXC) detector systems for energy-dispersive X-ray measurements
CXC Systems are complete, ready-to-use Colour X-Ray Camera solutions based on pnCCD technology. Each system is delivered as a fully integrated X-ray detection instrument, suitable for direct use or integration into laboratory setups, OEM instruments, and synchrotron beamlines.
Each system includes the pnCCD sensor, detector housing, cooling infrastructure, control electronics, and DAQ hardware. PNCamSuite software provides system control, data acquisition, and API access for external integration. This defines a consistent and reproducible platform for energy-dispersive X-ray detection.
Key Features
-
Complete pnCCD-based energy-dispersive X-ray area detector system
-
Single-photon X-ray detection with full spectroscopic information per pixel
-
Supplied as a fully integrated instrument, not a component set
-
Includes detector head, cooling system, control electronics, and DAQ hardware
-
Tight integration with PNCamSuite software and documented APIs
-
Full access to raw detector data for transparent analysis and post-processing
-
Designed for reliable operation in research, industrial, and OEM environments

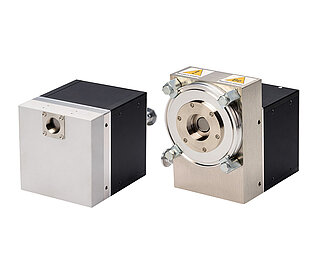

CXC CORE and CXC FLEX system variants for air and vacuum integration.
Example 55Fe spectrum measured with a pnCCD-based Colour X-Ray Camera system.
Live CXC data view showing individual photon events across the active sensor area.
Explore CXC System Configurations
Select the system architecture that matches your integration requirements. CORE Systems provide standardised, ready-to-use configurations. FLEX Systems support adaptable geometries and specialised integration scenarios. APERTURE Systems enable transmitted-beam geometries, and downstream instrumentation.
Within each system type, configurations are available for operation in air or vacuum environments.
CXC CORE Systems
Fully integrated detector and electronics in a compact, fixed system architecture.

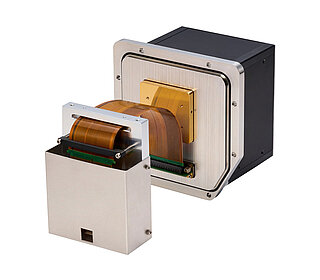

CXC FLEX Systems
Sensor head with remote electronics, enabling flexible positioning and adaptable system configurations.
CXC APERTURE Systems
Sensor head with remote electronics and a central aperture, enabling flexible positioning, transmitted-beam geometries, and downstream instrumentation.
