CXC APERTURE Systems
Configurable pnCCD-based Colour X-Ray Camera systems with central aperture geometry and remote electronics for transmitted-beam and downstream-instrumentation setups.
CXC APERTURE Systems are complete Colour X-Ray Camera solutions designed for applications where detector positioning must be combined with a central beam path through the detector plane. The central aperture enables geometries where transmitted X-rays, beamline components, or downstream instrumentation must remain on axis.
The system uses a flex-style split architecture, with the Sensor Module separated from the Camera Electronics Module. This enables flexible placement within the experimental setup while reducing mass and footprint at the measurement position.
Each system is delivered as a complete detector instrument, including aperture Sensor Module, remote electronics, cooling infrastructure, data acquisition hardware, PNCamSuite software, and defined integration interfaces.
Key Features
-
Central aperture for transmitted-beam and downstream-instrumentation geometries
-
Flex-style split architecture with remote Camera Electronics Module
-
Compact Sensor Module for reduced mass at the measurement position
-
Configurable system architecture supporting non-standard geometries and integration concepts
-
Complete detector system with defined hardware, software, cooling, and integration boundaries
-
Reduced footprint at the experiment compared with fully integrated systems
-
Available for air and vacuum operation
-
Integrated with PNCamSuite software and external control application programming interfaces
CXC APERTURE System sensor with the central aperture
PNCCD two sensor types: left - standard; right - with aperture
CXC APERTURE Air and Vac systems
System Configurations
CXC APERTURE Systems are available in two configurations to support different operating environments and experimental geometries.
Use the options below to explore how CXC APERTURE Systems are implemented for air and vacuum operation.

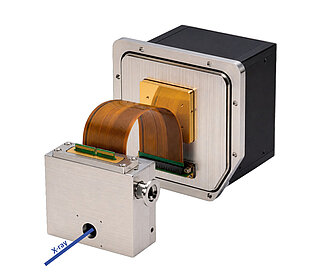

CXC APERTURE Air Systems
Ambient systems with a central aperture, enabling transmitted-beam and downstream instrumentation geometries.

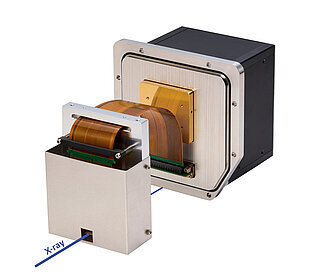

CXC APERTURE Vac Systems
Vacuum systems with a central aperture, supporting transmitted-beam geometries and downstream instrumentation.
