Energy Dispersive X-Ray Area Detectors
Energy Dispersive X-Ray Area Detectors based on pnCCD equipped Color X-Ray Cameras (CXC)
pnCCD based Color X-Ray Cameras (CXC) are energy-dispersive X-ray area detectors that combine spatial, spectral and temporal information in a single measurement. These systems provide full-field spectroscopic imaging with per-pixel resolution and flexible configurations. Developed for OEM integration, laboratory setups and synchrotron end stations, CXC detectors enable advanced X-ray analysis across a wide range of scientific and industrial applications.
CXC Systems
Complete pnCCD based Color X-Ray Camera (CXC) systems including detector, cooling, electronics and PNCamSuite software, with configurable options to support OEM instrumentation, laboratory setups and synchrotron end station integration.

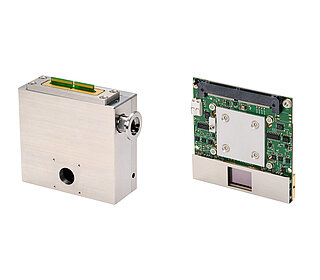

CXC OEM Sensor Modules
pnCCD based Color X-Ray Camera (CXC) sensor modules for OEM integration, available as packaged or unpackaged versions, supporting development of custom X-ray area detectors for OEM instrumentation.
PNCamSuite Software and APIs
PNCamSuite software provides full control of pnCCD based Color X-Ray Cameras (CXC), with live-view imaging, spectroscopic analysis, data export and APIs for seamless integration into OEM instruments, laboratory setups and synchrotron environments.

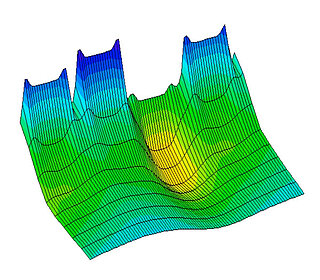

pnCCD Working Principles
Technical overview of pnCCD detectors used as energy-dispersive X-ray area detectors, describing backside-illuminated sensor architecture, frame transfer operation and advantages of fully depleted silicon for high-resolution X-ray detection.

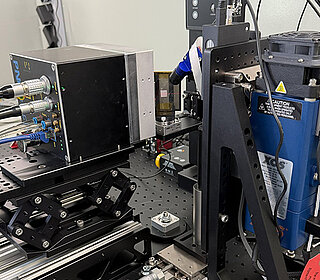

CXC Applications
Application examples of pnCCD based Color X-Ray Cameras (CXC), covering hyperspectral XRF imaging, simultaneous XRF–XRD mapping, energy-dispersive CT, polychromatic SAXS, energy-dispersive diffraction and XRF tomography in research and instrumentation.
