STEM Systems in SEM
Equip your SEM with PNDetector’s STEM System
Advanced new SEMs make STEM also in SEM more and more popular.
PNDetector’s STEM Systems are based on our Advanced STEM Detectors – adding all the electrical and mechanical components to provide an easy and user friendly installation in your SEM. Different configurations of main amplifiers for fast signal processing are availableas well as the retraction mechanism to provide safe and exact movement of the detector into your chamber when needed.
Key Features
-
Our detector systems comprise the full variety of our STEM Detectors dedicated for SEM, with typically four channels for BF, ADF, LAADF and HAADF.
-
The STEM signals are processed by our low noise and fast-amplify electronics.
-

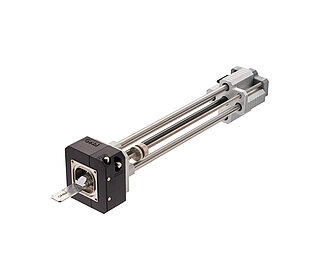

The retractable arm works highly precisely with excellent position repeatability.

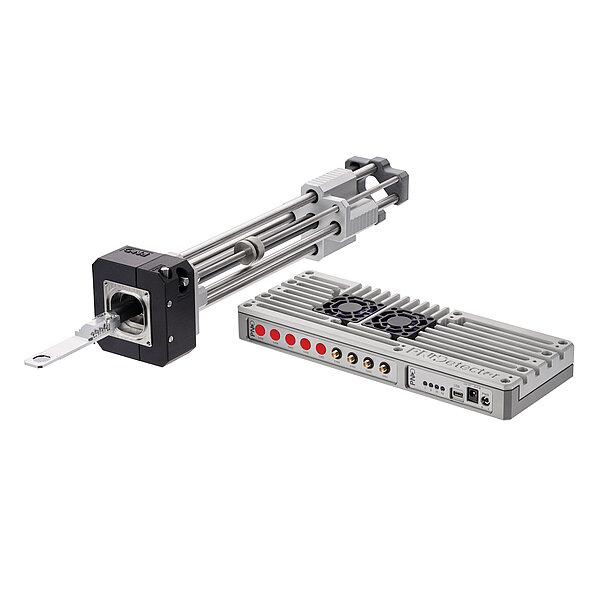

STEM Detector System for SEM comprising ADV STEM Detector with integrated electronics, 4 channel Main Amp and Retractable Arm

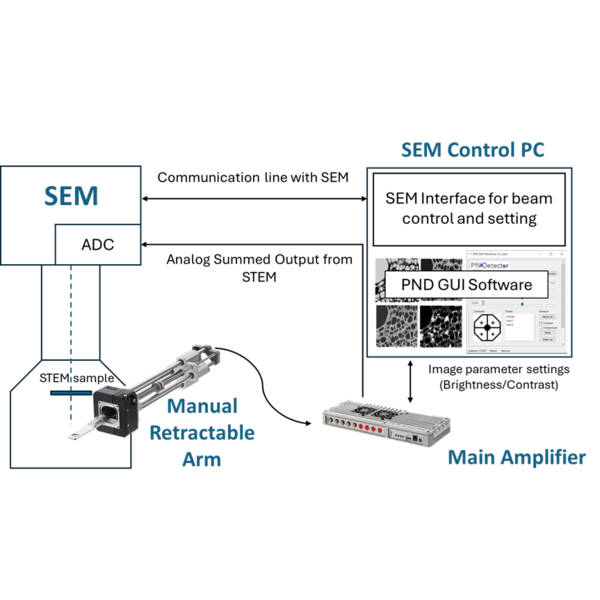

Schematic of PNDetector’s STEM system integrated into an SEM: the Advanced STEM detector is positioned at the front of the retractable positioning system, with image acquisition managed via PNDetector’s Main Amplifier GUI software.

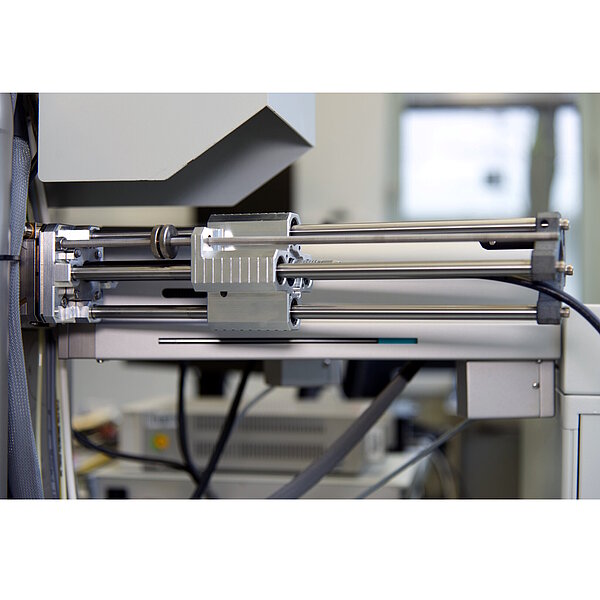

The Retractable Arm can be easily moved into SEM chamber through the microscope flange.

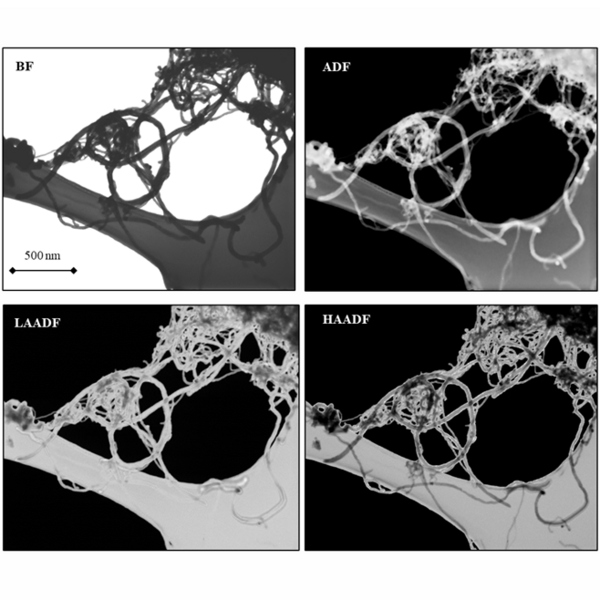

Carbonanotube clusters on a holey carbon film
Electrical and mechanical components of the STEM System in SEM:
| Advanced STEM Detectors | Number of channels | Retractable Positioning System | Signal Conditioning |
|---|---|---|---|
| ADV-STEM-14-1-3-BF05 | 4 | Manual Retractable Arm V2 | MA-PN4 or MA-PN44 |
| ADV-STEM-10-4-2-BF0S | 9 | Manual Retractable Arm V2 | MA-PN99 |
Advanced STEM Detectors for SEM

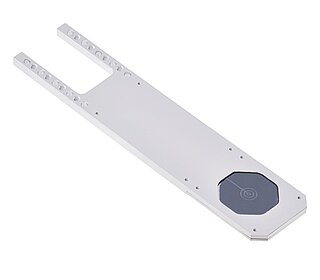

4 or 9 channel annular silicon-based STEM detector is equipped with 4-9-channel preamplifier electronics in one housing
- ADV-STEM-10-4-2-BF05 (9 channels)
- ADV-STEM-14-1-3-BF05 (4 channels)
Main Amplifier for STEM Detectors in SEM
Low noise high speed amplification is performed for 4 to 9 channels MA-PN4, MA-PN44, MA-PN99
- 4-9 analog inputs
- 1-9 analog outputs
