PNCamSuite Software and APIs
Unified control, acquisition and analysis software for pnCCD-based CXC Systems
PNCamSuite is the central software platform for operating, configuring and analysing data from PNDetector’s pnCCD-based CXC Systems. It provides a consistent environment for live measurements, offline analysis, automation and system integration, supporting applications from spectroscopy and imaging to scanning and synchronised experiments.
The software combines a graphical user interface with programmable APIs, allowing users to work interactively or integrate the CXC into automated workflows and external control systems. All data handling, calibration and processing are performed within a unified framework to ensure traceable, reproducible results.
Key Features
-
Operate and configure CXC Systems through a unified graphical user interface
-
Acquire live imaging, spectroscopy and scan-based measurements
-
Process RAW data into event-resolved and energy-calibrated datasets
-
Store all measurements in a self-contained HDF5 format with calibration and metadata
-
Perform offline analysis with identical results to live acquisition
-
Synchronise acquisition with software and external hardware using timing and trigger functions
-
Automate experiments and system control using programmable APIs
-
Support safe software development through virtual systems and SDK tool
Learn more about the PNCamSuite Feature

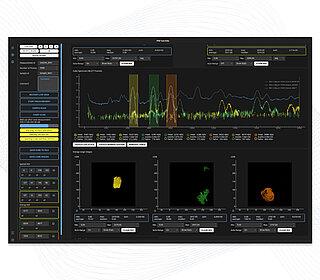

PNCamSuite live measurement view showing spectra, regions of interest and energy-filtered images.

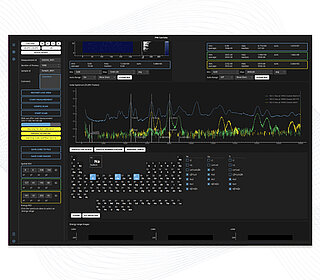

PNCamSuite offline analysis view for reviewing saved CXC data and spectral features.

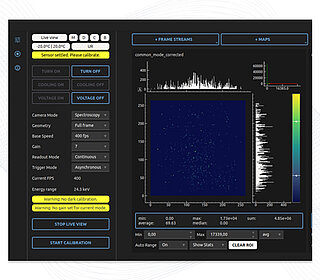

PNCamSuite configuration view for camera control, calibration and live frame display.
CXC trigger inputs and output signals for synchronised acquisition workflows.
HDF5 data structure showing stored CXC measurement fields, maps and metadata.
Pixel-level CXC event view showing individual photon events used in event analysis.

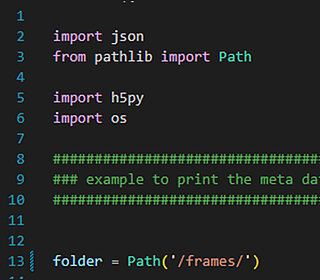

Example Python code for PNCamSuite software development kit and application programming interface workflows.
Live view and measurement
See images and spectra in real time, define spatial and energy ROIs, scan samples and record data.
Spectroscopic Imaging and Elemental Analysis
Inspect spectra, select elemental lines and energy regions of interest, and generate spatial and false colour maps from CXC data.
Event Analysis and Smart Counting
Per-pixel spectra enable event recombination, pile-up handling and precise smart counting strategies.
Offline analysis
Reload saved data cubes, recalculate with different settings and compute spectral gain when needed.
Advanced Timing, Synchronisation and Scanning
Use triggered, gated or combined modes, plus a frame-synchronous trigger for external instruments.
Configuration and Calibration
Set speed, gain and windowing, monitor system health, run dark calibration.
Data Format
Data is stored in compact HDF5 with offsets, noise, gain maps and cube data for easy access in Python.
Developer Options: SDK and API
Control the system via scripts, build LabCompanion plug-ins, and extend processing with MyAnalysis and MyHdf5Tools.
