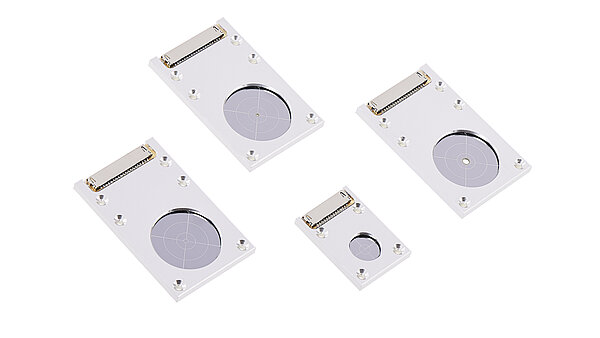

Standard STEM Detectors
Get the best STEM images with PNDetector's Standard STEM Detectors
The detectors are available in different chip segmentations and ring structures. They can be used in TEM as well as SEM. On request custom segmentation can be applied.
Key Features
-
Standard STEM Detectors are the best solution for fixed mounted configurations with a minimum of space available.
-
All our STEM Detectors are available in this configuration, varying from 10 to 22 mm diameter, 1 to 3 rings, 4 to 13 channels, equipped with a central hole or a bright field
-
A separate preamplifier supporting up to 13 channels improves your SNR.
Selection of Standard STEM Detectors

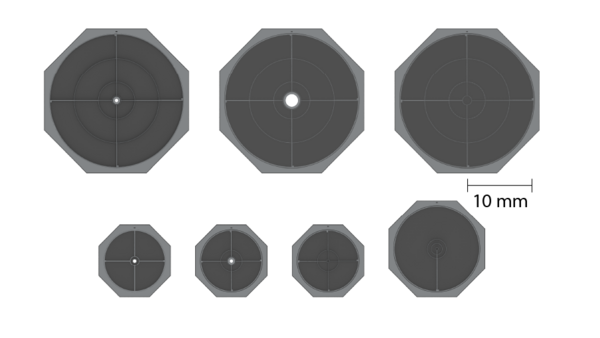

Illustrations of STEM chip layouts with various segmentations for BF, ADF, LAADF, and HAADF detection.

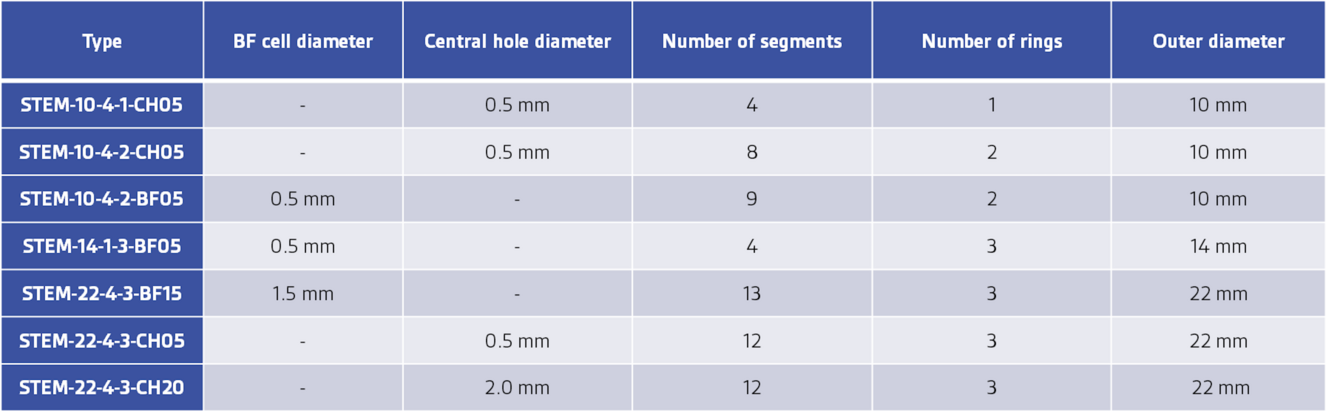

Overview of the different types of PNDetector’s STEM chips:
| Type | BF cell diameter | Central hole diameter | Number of segments | Number of rings | Outer diameter |
|---|---|---|---|---|---|
| STEM-10-4-1-CH05 | - | 0.5 mm | 4 | 1 | 10 mm |
| STEM-10-4-2-CH05 | - | 0.5 mm | 8 | 2 | 10 mm |
| STEM-10-4-2-BF05 | 0.5 mm | - | 9 | 2 | 10 mm |
| STEM-14-1-3-BF05 | 0.5 mm | - | 4 | 3 | 14 mm |
| STEM-22-4-3-BF15 | 1.5 mm | - | 13 | 3 | 22 mm |
| STEM-22-4-3-CH05 | - | 0.5 mm | 12 | 3 | 22 mm |
| STEM-22-4-3-CH20 | - | 2.0 mm | 12 | 3 | 22 mm |
Choose the geometry that fits your needs:
Select products
Select products description
The STD-STEM-10-4-1-CH05 Detector
10 mm outer diameter
1 ring with 4 segments
0.5 mm diameter central hole (CH)
1 ring with 4 segments
0.5 mm diameter central hole (CH)
Select products
Select products description
The STD-STEM-10-4-2-CH05 Detector
10 mm outer diameter
2 rings with 4 segments in each ring
0.5 mm diameter central hole (CH)
2 rings with 4 segments in each ring
0.5 mm diameter central hole (CH)
Select products
Select products description
The STD-STEM-10-4-2-BF05 Detector
10 mm outer diameter
2 rings with 4 segments in each ring
1.5 mm diameter bright field (BF)
2 rings with 4 segments in each ring
1.5 mm diameter bright field (BF)
Select products
Select products description
The STD-STEM-14-1-3-BF05 Detector
14 mm outer diameter
3 rings with 1 segment each
0.5 mm diameter central hole (CH)
3 rings with 1 segment each
0.5 mm diameter central hole (CH)
Select products
Select products description
The STD-STEM-22-4-3-BF15 Detector
22 mm outer diameter
3 rings with 4 segments each
1.5 mm diameter bright field (BF)
3 rings with 4 segments each
1.5 mm diameter bright field (BF)
Select products
Select products description
The STD-STEM-22-4-3-CH05 Detector
22 mm outer diameter
3 rings with 4 segments each
0.5 mm diameter central hole (CH)
3 rings with 4 segments each
0.5 mm diameter central hole (CH)
Select products
Select products description
The STD-STEM-22-4-3-CH20 Detector
22 mm outer diameter
3 rings with 4 segments each
2 mm diameter central hole (CH)
3 rings with 4 segments each
2 mm diameter central hole (CH)
Select products
Select products description
The Standalone Preamplifier
Low noise preamplifier
driving up to 13 channels
driving up to 13 channels
