    Fixed Bottom Version

    Fixed Bottom Version

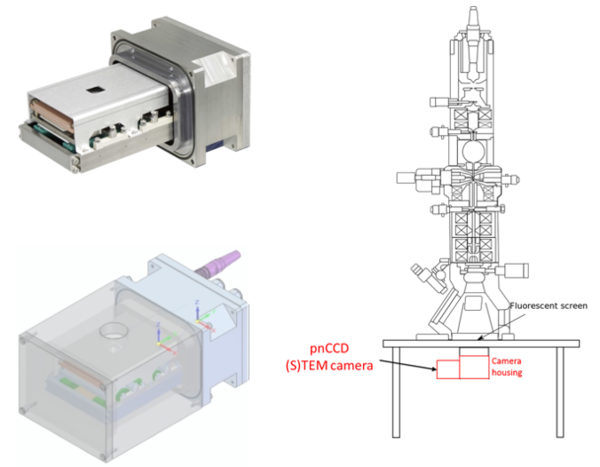

    This pnCCD (S)TEM camera version is compatible with TEMs where no EELS spectrometer is installed at the bottom of the microscope, or TEMs with an in-column filter (Omega filter).

    It is possible to mount the pnCCD (S)TEM camera in an additional camera housing below an already existing retractable camera.

    The synchronisation to an existing STEM unit can be realized custom specific

    Request Datasheet
